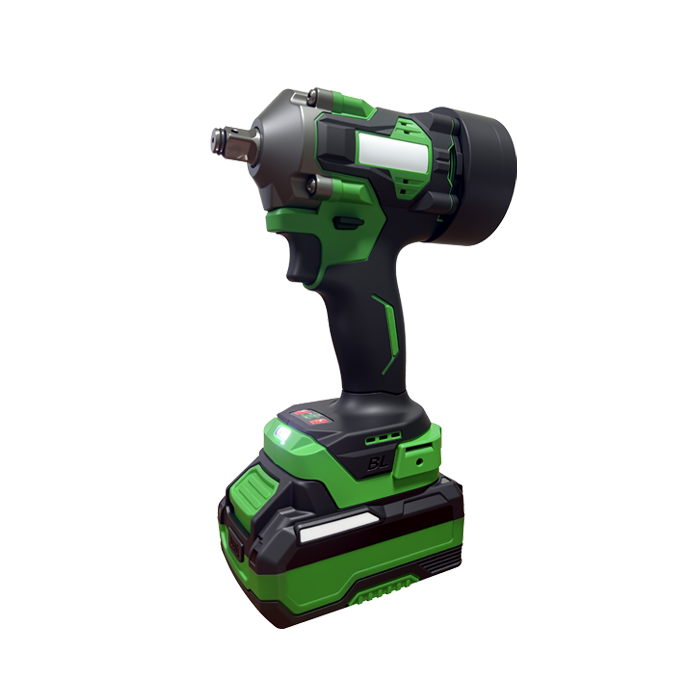

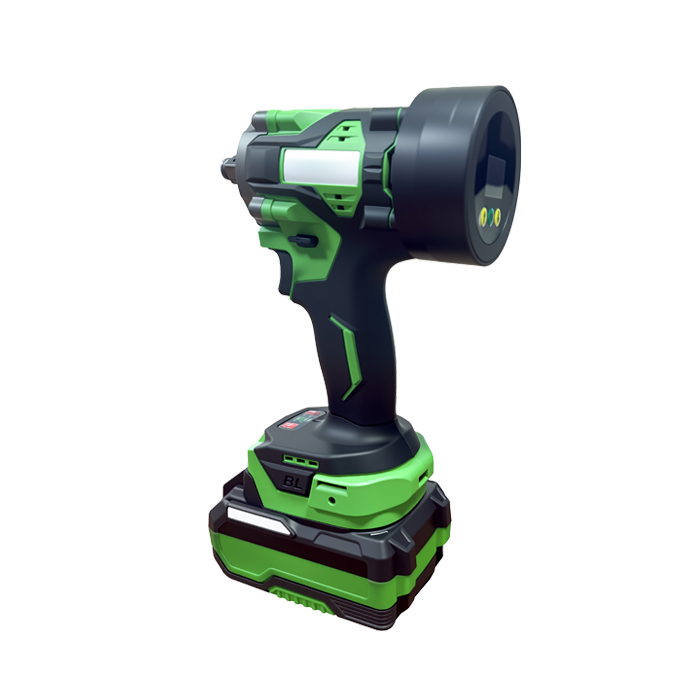

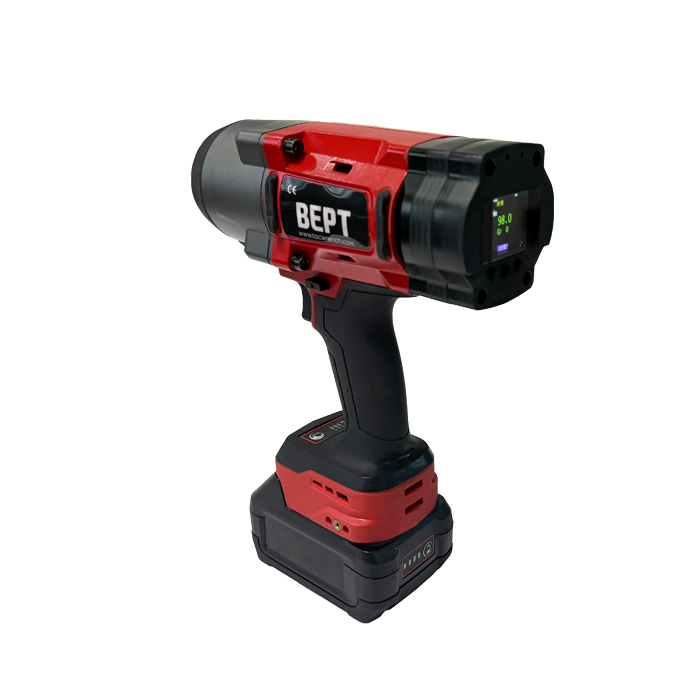

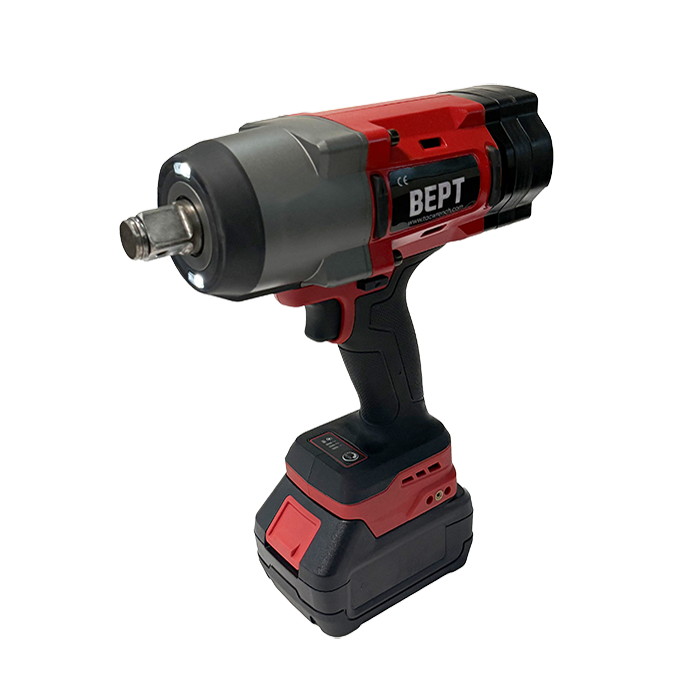

BIW Impact Electronic Pulse Torque Wrench

No Reactive Force Tightening SystemBIW Torque Control Technology: Stable perform
Description

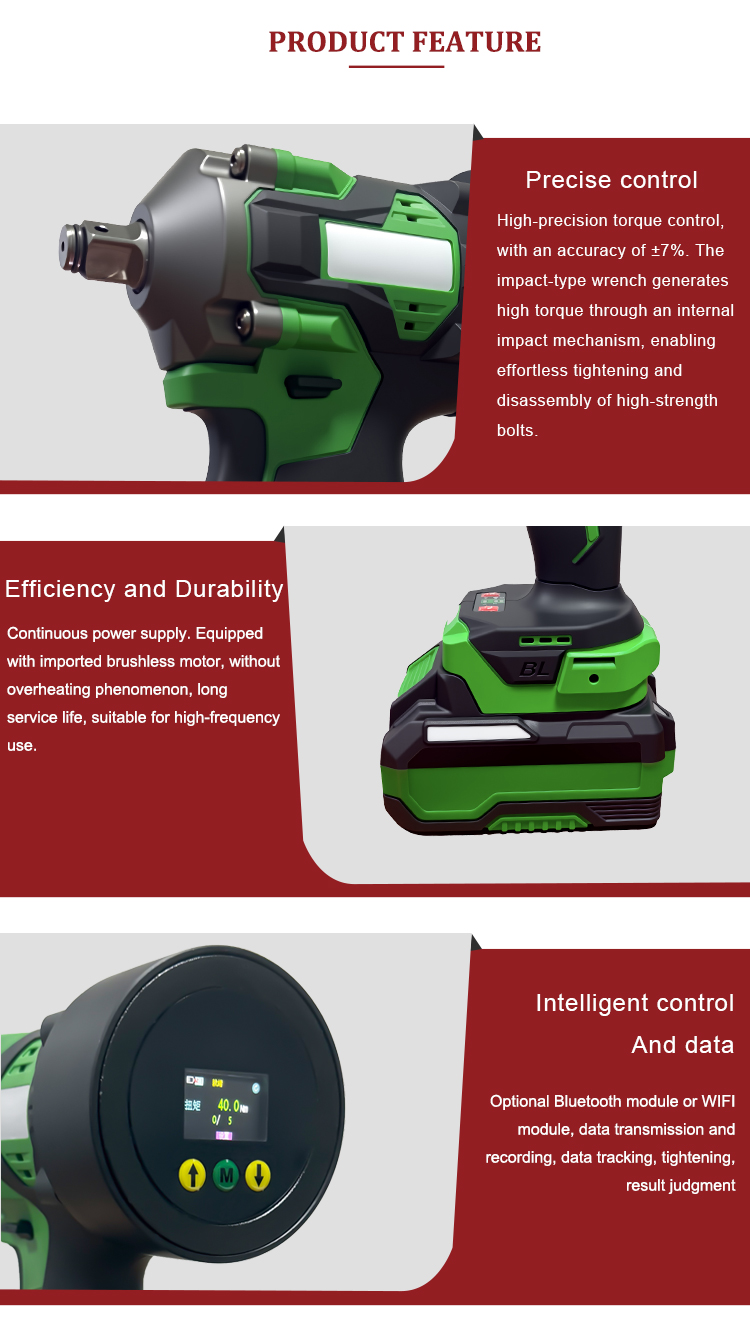

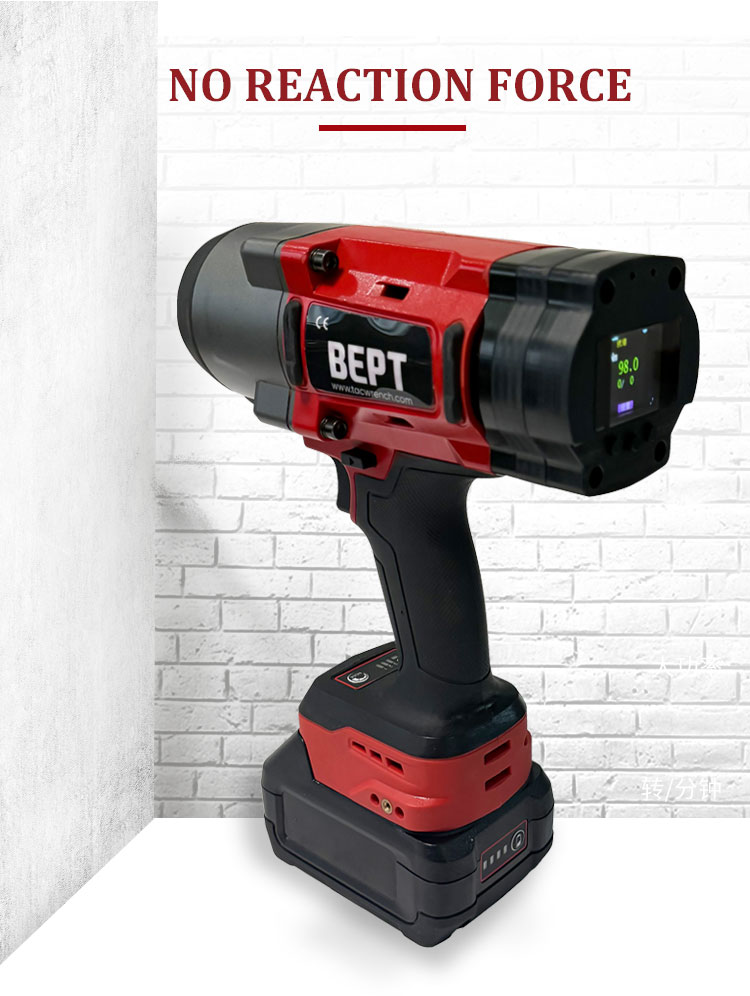

No Reactive Force Tightening System

BIW Torque Control Technology: Stable performance, repeatable results, and high-precision torque control with an accuracy of up to ±7%. Impact wrenches generate high torque through an internal impact mechanism, easily handling the tightening and loosening of high-strength bolts.

Ergonomic Operation

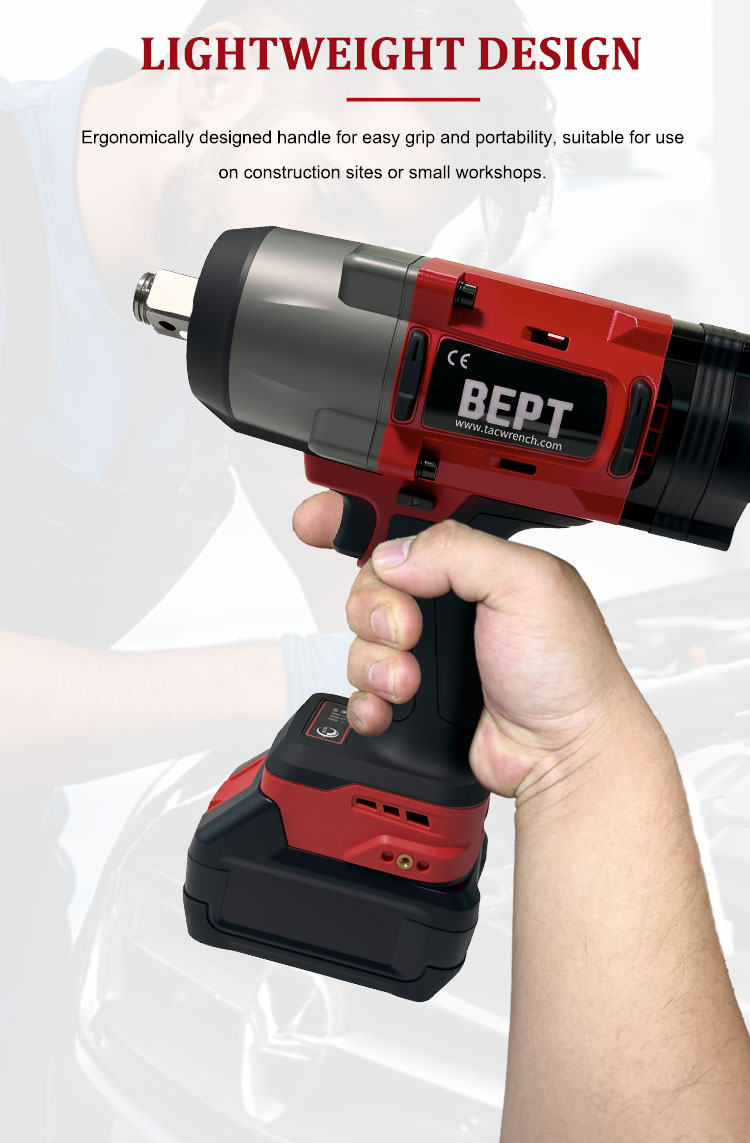

Ergonomic Design: Low vibration reduces operator fatigue, enhancing comfort during prolonged use. Lightweight for easy handheld operation, minimizing physical strain.

Compact Design: Small size allows operation in confined spaces, improving work efficiency.

Efficiency and Durability

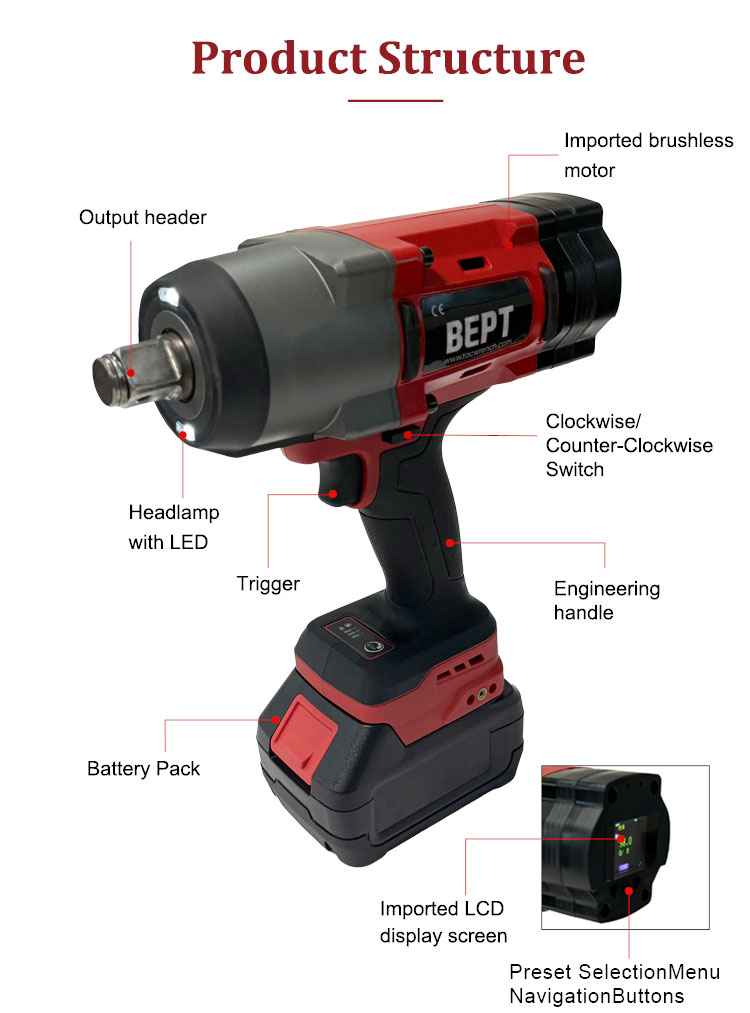

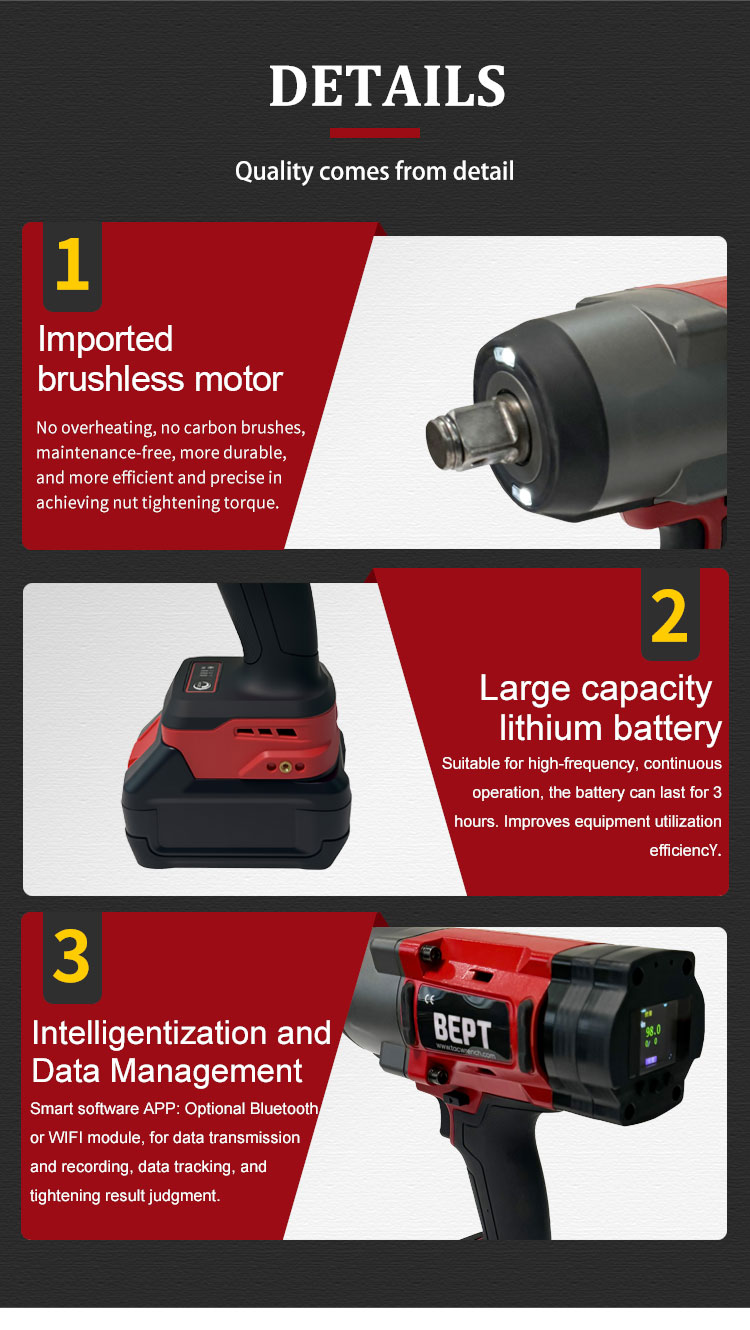

High Efficiency: Fast response and high rotational speed significantly reduce tightening time, boosting productivity. Utilizes imported brushless motors with no overheating issues.

High Durability: Imported brushless motors eliminate carbon brushes, require no maintenance, and offer extended durability while delivering precise nut-fastening torque.

Long Battery Life: Supports high-frequency continuous operation with up to 3 hours of battery life per charge, maximizing equipment utilization.

Smart Features and Data Management

Smart Software APP: Optional Bluetooth or WiFi modules enable data transmission, recording, tracking, and tightening result analysis.

Intelligent Color LCD Screen: Facilitates torque setting, real-time torque display, angle monitoring, rotation count logging, and records the number of nuts tightened or loosened for precise operations.

Model Min torque(N.m)  Max torque(N.m) S (mm)  L H D Weight Max speed
mm (Kg) rpm

BIW-0025

6 25 1/4" 150 103 39 1.1 2600

BIW-0060

15 60 3/8" 160 160 46 1.4 2800

BIW-0100

25    100   3/8" 165 165 57 1.9 2800

BIW-0140

35 140 1/2" 165 165 57 2.8 2800

BIW-0225

56  225 1/2" 220 220 70 2.8 3000

BIW-0300

75 300 1/2" 256 256 72 3.2 3200
BIW-0500 125 500 3/4" 270 270
80 3.6 3500
BIW-0800 200 800 3/4" 300 300 85 3.8 3600
BIW-1000 250 1000   1" 320 320 90 4.2 3800
BIW-1500 375 1500   1-1/2" 320 320 90 4.2 3800
