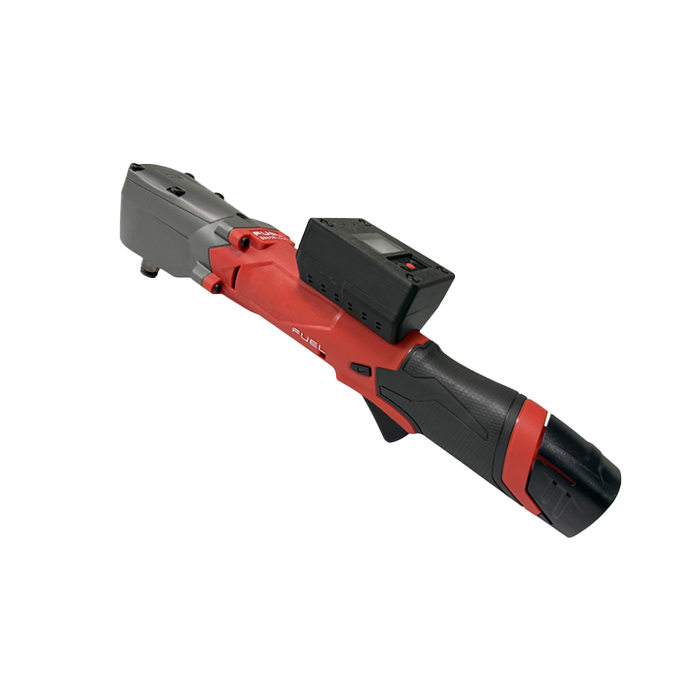

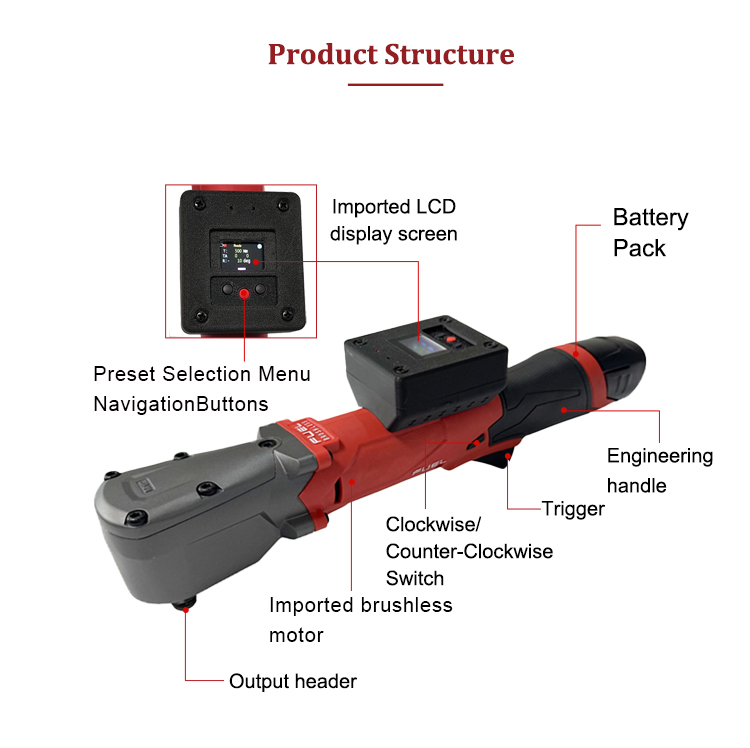

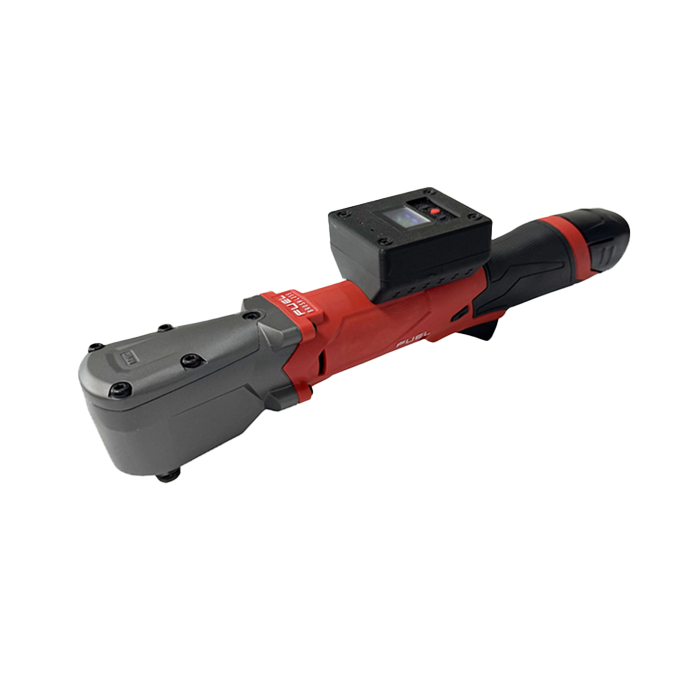

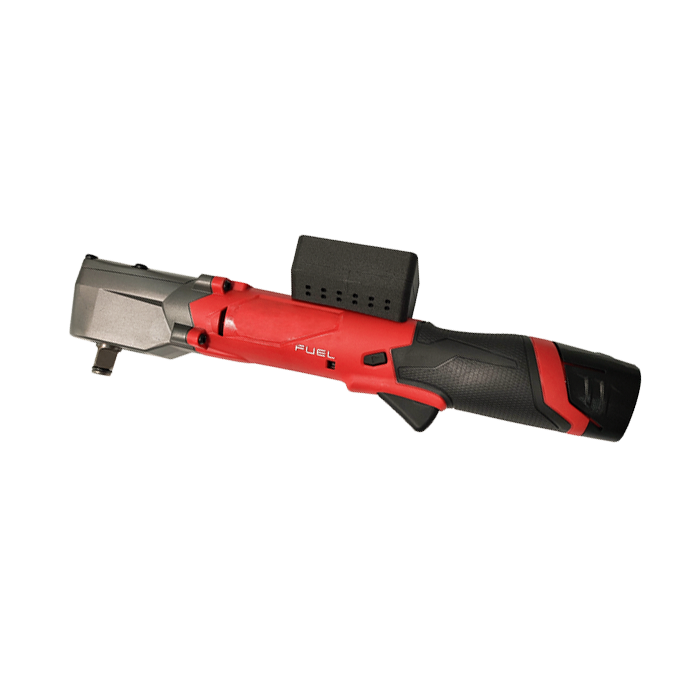

Elbow Design
Compact Design: The elbow structure positions the tool head at a right angle to the handle, making it ideal for operation in confined spaces (e.g., engine compartments, wheel wells, mechanical gaps) while avoiding obstructions.
Flexible Adaptation: Accommodates bolts/nuts at various angles for effortless disassembly.
No Reactive Force Tightening System
BIA Torque Control Technology: Ensures stable performance, repeatable results, and high-precision torque control (accuracy: ±7%).
Impact Mechanism: Generates high torque for tightening or loosening high-strength fasteners with ease.
Ergonomic Design
Lightweight Body: Constructed with alloy or composite materials to reduce weight and minimize fatigue during prolonged use.
Anti-Slip Handle: Rubber-coated or textured surface enhances grip stability.
Quick Reverse Switch: Toggle between forward/reverse rotation via a button for improved efficiency.
Efficiency & Durability
High Performance: Rapid response and high RPM significantly reduce tightening time, boosting productivity.
Imported Brushless Motor: Eliminates overheating, requires no carbon brushes, and is maintenance-free for extended durability and precision.
Long Battery Life: Supports up to 3 hours of continuous operation under high-frequency use, maximizing equipment utilization.
Smart Features & Data Management
Smart App Integration: Optional Bluetooth/Wi-Fi modules enable data transmission, tracking, and tightening result analysis.

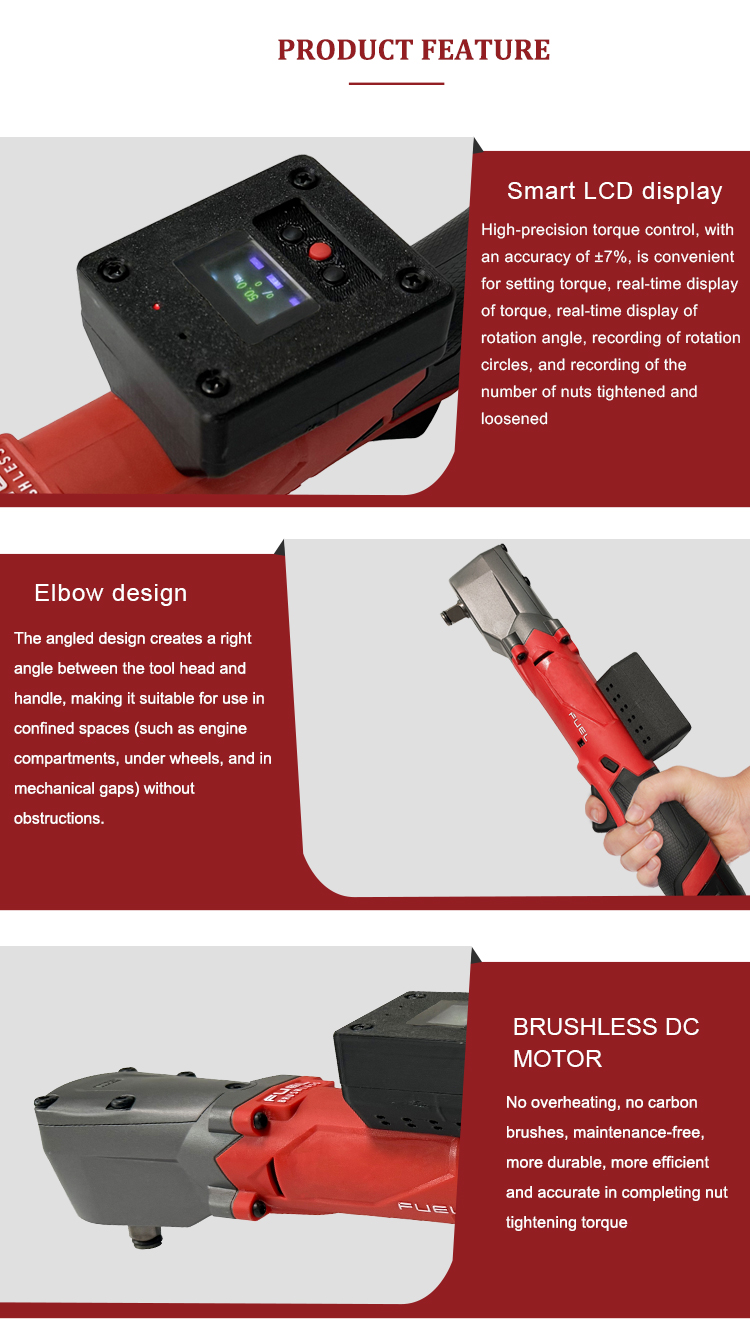

Color LCD Screen: Displays real-time torque/angle/rotation counts; logs the number of fastenings/loosenings; simplifies torque settings.
Model | Min Torque(N.m) | Max Torque(N.m) | S(in) | length(mm) | Width A (mm) | Width B (mm) | Battery Type(V) | weight (Kg) | Max Speed (rpm) |
BIA-0025 | 6 | 25 | 1/4" | 365 | 55 | 40 | 12 | 1.5 | 370 |
BIA-0060 | 15 | 60 | 3/8" | 365 | 55 | 40 | 12 | 1.6 | 610 |
BIA-0100 | 25 | 100 | 3/8" | 368 | 57 | 42 | 57 | 1.6 | 1250 |
BIA-0140 | 35 | 140 | 1/2" | 368 | 57 | 42 | 57 | 1.7 | 1500 |
BIA-0225 | 56 | 225 | 1/2" | 372 | 60 | 45 | 70 | 1.8 | 1600 |
BIA-0300 | 75 | 300 | 1/2" | 372 | 60 | 45 | 72 | 1.8 | 1650 |
